FEATURES

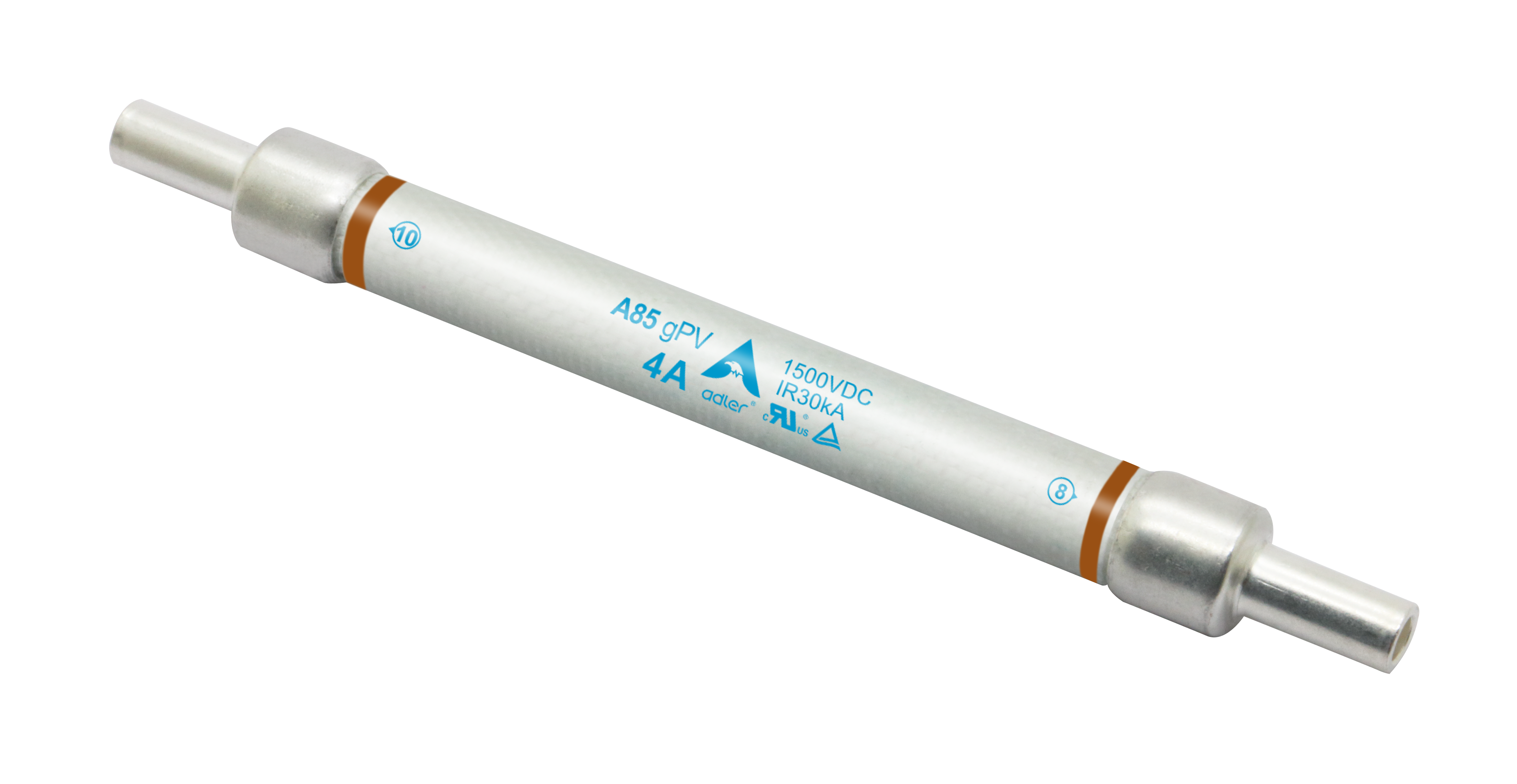

• 1500 Vdc, 10×85 mm PV fuse-link with glass-fiber body
• Rated Current: 1-32 A
• Rated Breaking Capacity: 30 kA @ 1500 Vdc (1-32A) Self - Certified: 50 kA @ 1500 Vdc (1-20A)
• Time Constant: 1-3 ms
• Special design with silver plated caps for high-power PV applications
• Customizable for special applications
• BH300-01, BH300-02 holders for DIN rail mounting
Samples Request
Description
Adler A85 series PV fuses are engineered and manufactured for use in Combiner Box and Power Storage Protection, made from the highest quality materials and tested to the highest standards. With rated currents from 1A to 32A with a breaking capacity of 30kA
Product Parts Information
|
S. No. |
Part No. |
Datasheet |
|
1. |
A85 gPV 1500 Vdc Fuse 10×85 mm |
 Datasheet
|
