SPECIFICATIONS
• Rated Voltage: 1500 VDC
• Rated Current: 80 A
• Rated Breaking Capacity: 10 kA
• Wire Range: 11-1 AWG (4-40 mm²)
• Max. Torque: 4 N.m
• Maximum Heat Dissipation: 8 W
• Operation Temperature: -40 °C to 150 °C
• Material Flammability: UL 94 V0
• Mounting: DIN Rail mounting
• Standards: UL 4248-19; EN 60947-3
Samples Request
DESCRIPTION

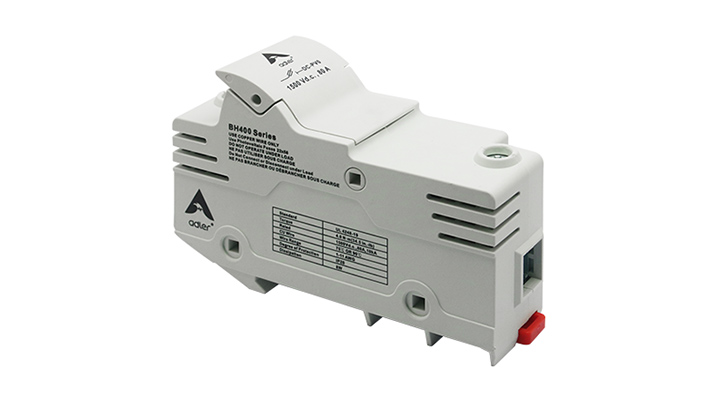

BH400 and BH401 touch safe holders are designed for 22×58 mm cylindrical fuse links, especially for use with photovoltaic equipment. BH401 touch safe holder has an indicator light. It will light up when the circuit is interrupted.
Product Parts Information
|
S. No. |
Part No. |
Datasheet |
|
1. |
BH400 |
 Datasheet
|
