Typical Features
• Wide input voltage range ( 4:1), Output Power 12W
• Transfer Efficiency up to 89%
• Stand-by Power Consumption as low as 0.05W
• Output super-fast start up
• Continuous Short Circuit protection, Self-recovery
• Input under voltage, output over voltage, short circuit, over current protection
• Switching Frequency 300KHz
• Isolation Voltage: 2100VAC
• Operating Temperature: -40°C~+85°C
• Good EMI performance
• International standard pin-out
Samples Request
Application Field

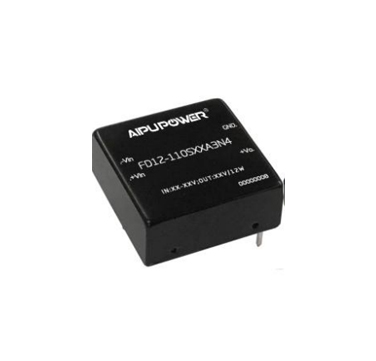

A newly designed DIP 1X1 packed,12W output power, ultra wide input range4:1, lowstand-by power consumption, isolated regulated output DC-DC converter, could be widely used for railway, industrial control, instrument, communication, power electricity, internet of things field. For harsh EMCenvironment,the application circuit in the datasheet is strongly recommended.
