Typical Features
• Wide input voltage range 2:1
• Efficiency up to 93%
• Low no-load power consumption
• Operating Temperature from -40℃ to +105℃
• High isolation voltage 1500VDC(input-output)
• Input under voltage protection, output over current, over voltage, over temperature & short circuit protections
• Standard 1/8 brick size
Samples Request
Application Field

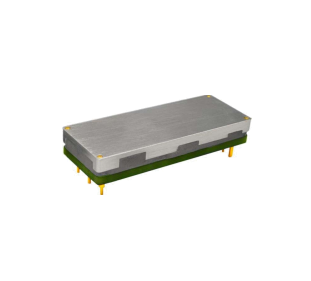

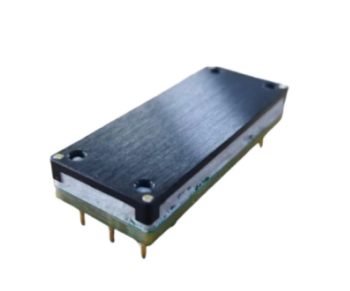

A high-reliability DC-DC converter specially designed for communication field, Its rated input voltage 48VDC (full range from 36V to 75VDC), regulated single output 12V/120W without minimum load limit. It has the advantages of input under-voltage protection, output over-current, over-voltage, over-temperature and short circuit protections, input remote control, output voltage distal end compensation and output Trim functions, etc.
Product Parts Information
|
S. No. |
Part No. |
Datasheet |
|
1. |
ZDD100-48S05 |
 Datasheet
|
|
2. |
ZDD120-48S12 |
Datasheet
|
|
3. |
ZDD120-48S15 |
Datasheet
|
|
4. |
ZDD120-48S12D |
Datasheet
|
|
5. |
ZDD120-48S24 |
Datasheet
|
|
6. |
ZDD120-48S28 |
Datasheet
|
|
7. |
ZDD150-48S24 |
Datasheet
|
|
8. |
ZDD150-48S28 |
Datasheet
|
|
9. |
ZDD180-48S12 |
Datasheet
|
|
10. |
ZDD200-48S05 |
Datasheet
|
